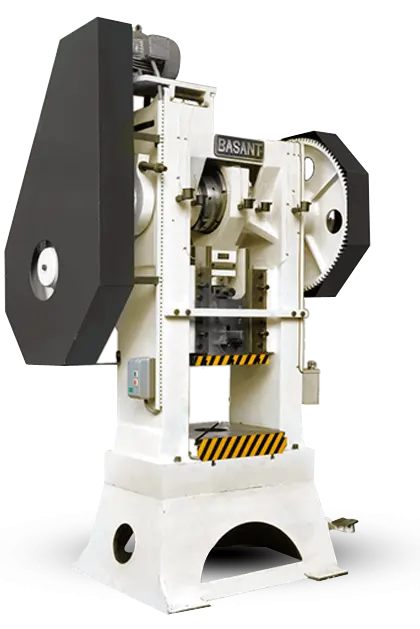

H Frame Power Press Manufacturer in India
The name "H Frame" comes from the H-shaped frame structure — two vertical columns (pillars) with a connecting crossbeam. Because the frame is closed on both sides, it resists deflection better than an open C-Frame press, making it the preferred choice for precision stamping, deep drawing and forging at higher tonnages.
Basant's H Frame presses are welded from stress-relieved graded steel with nickel-phosphorous bushes and an adjustable stroke, built for drawing, pressing, stamping, trimming, cutting, blanking and piercing work.
Key Features
- Two- or four-pillar frame for exceptional rigidity and stability
- Available with mechanical or pneumatic (hydraulic-style control) drive
- Adjustable bed and ram for different dies and workpiece sizes
- Tonnage typically 20T to 1000T+
- Precision guide system along the pillars for accurate ram alignment
Technical Specification
Figures below are standard reference models — confirm exact specification for your requirement with our sales team.
| Capacity (tons) | 20 | 30 | 50 | 75 | 100 |
|---|---|---|---|---|---|
| Table size (mm) | 440×400 | 430×455 | 455×480 | 525×580 | 555×600 |
| Distance table to RAM (mm) | 250 | 260 | 300 | 350 | 375 |
| Punch hole size (mm) | 28 | 32 | 32 | 38 | 38 |
| Stroke length (mm) | 65 | 75 | 90 | 100 | 100 |
| Shut height (mm) | 185 | 185 | 210 | 250 | 275 |
| Strokes per minute | 70 | 65 | 60 | 50 | 45 |
| Power required (H.P.) | 2 | 3 | 5 | 5 | 7.5 |
Common Applications
Automotive body panels, chassis parts, gears, bearings
Deep drawing and precision forming
Forging and hot stamping
Appliance manufacturing (washer drums, refrigerator panels)
Electrical transformer laminations
Medical device component stamping
H Frame Power Press — Frequently Asked
What is an H Frame power press also known as?
It's also known as a Pillar Type or Straight-Side power press, named for its two vertical support columns.
What tonnage range does Basant's H Frame press cover?
From 20 tons up to 1000+ tons, available with mechanical or pneumatic clutch and die cushion.
Why choose an H Frame press over a C-Frame press?
The closed, two-pillar frame of an H Frame press deflects less under heavy load than an open C-Frame, making it better suited to higher-tonnage precision stamping, deep drawing and forging.
