C Type Power Press Manufacturer in India
The C-Type Power Press takes its name from its C-shaped frame profile, which leaves the working area open on three sides for quick die access, material feeding and inspection. It's the most common press configuration for general sheet-metal stamping where fast setup and operator convenience matter as much as tonnage.

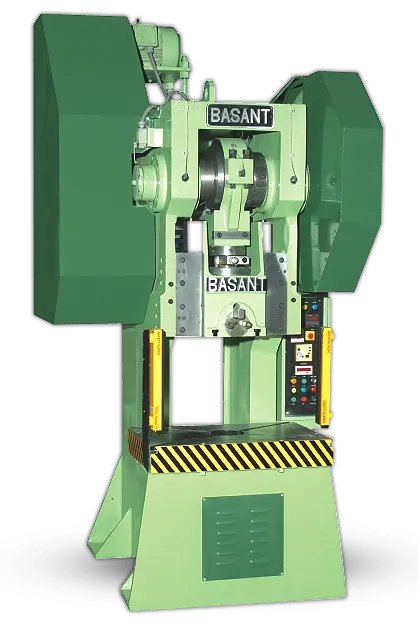

Basant's C-Frame presses are built from robust cast iron and high-grade steel with a mechanical clutch drive, and are available across capacities from 3 to 250 tons for automotive, electrical, hardware, appliance and general engineering applications.
Key Features
- Open C-shaped frame for easy die access from three sides
- Frame in annealed cast iron or MIG-welded graded steel plate
- High-carbon steel crankshaft with extra-large crank pins to control deflection
- Available with mechanical or pneumatic clutch
- User-friendly PLC control panel
Technical Specification
Figures below are standard reference models — confirm exact specification for your requirement with our sales team.
| Capacity (tons) | 10 | 20 | 30 | 50 |
|---|---|---|---|---|
| Table size (mm) | 350×425 | 375×450 | 450×500 | 450×600 |
| Distance table to RAM (mm) | 225 | 250 | 275 | 300 |
| Punch hole size (mm) | 25 | 28 | 32 | 32 |
| Stroke length (mm) | 50 | 50 | 75 | 90 |
| Shut height (mm) | 175 | 200 | 200 | 210 |
| Strokes per minute | 80 | 70 | 65 | 55 |
| Power required (H.P.) | 2 | 2 | 3 | 5 |
Common Applications
Sheet metal stamping (automotive parts)
Punching holes in metal sheets
Bending and forming (brackets, enclosures)
Riveting and assembly (electronics, appliances)
Fine blanking (precision cutting)
C Type Power Press — Frequently Asked
What is a C Type power press used for?
It's used for general sheet-metal stamping, punching, blanking, bending, piercing, embossing and assembly operations across automotive, electrical, hardware and appliance manufacturing.
What tonnage range does a C-Frame power press cover?
Basant's C-Frame range spans roughly 3 to 250 tons, with heavier configurations available on request.
What's the difference between a C-Frame and an H-Frame press?
A C-Frame press has an open front for easy die access and is typically used for lighter to mid-tonnage work; an H-Frame press has a closed, two-pillar frame offering greater rigidity for higher-tonnage precision stamping.
